Advanced Rail Vehicle Positioning and Monitoring System: An Innovation by UST Inc.
29 July 2025
The safe movement of unmanned vehicles depends on the accuracy of determining their position on the highway. UST Inc.’s specialists have developed and implemented a positioning system that can determine the location of uPods with an accuracy of up to 5 cm. We will explain how these indicators were achieved in our material.
In modern transportation management, the ability to determine the position of the vehicle quickly and accurately is a key aspect. Our engineers implemented comprehensive technology integrating several independent data channels: The GPS system, RFID tags, and dual-channel odometry.
Magnets and RFID tags are installed on the supports, and the reader is mounted in the uPod.
RFID tags and magnets are attached to the supports of the uST complex. A reader is installed in each uPod. The integration of three technologies—GPS, RFID systems, and odometry—allows for the systematic control of the vehicle movements.
The system's algorithms ensure continuous data processing. They capture even the slightest deviation from normative trajectory and speed indicators.
In addition to controlling travel, the system monitors the technical state of the overpass. It automatically creates a digital load model for each section, tracks vehicle passage, and collects operational statistics.

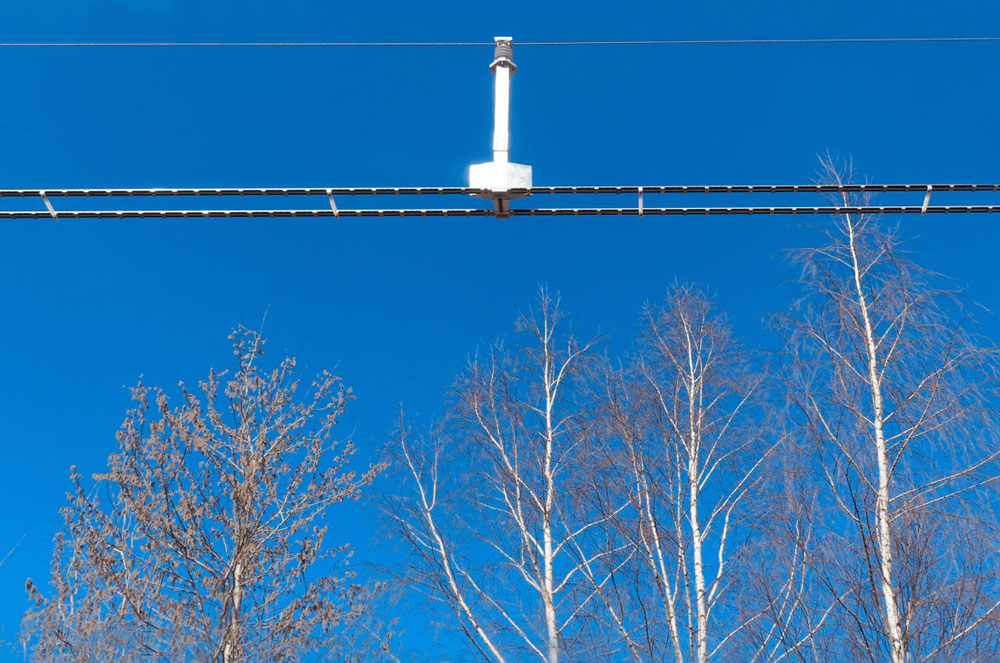

Track structure balancer with RFID reader.
This data is used to generate monthly reports that identify areas with increased wear and tear. These reports allow to promptly take measures to rehabilitate or reinforce the structure, thereby reducing risks and increasing the track structure's overall reliability.
The integrated video surveillance module is part of the automated control system that manages the uST complex. High-resolution cameras are placed on supports, stations, and other important points along the route. This creates a continuous digital field of view without blind spots.
Real-time surveillance feed is transmitted to the monitoring operator
The operator receives instant synchronization of visual information with the vehicle's exact coordinates, enabling an immediate response to any operational anomalies.
Two years of operation have confirmed the effectiveness of the innovative solution. During this period, the positioning system demonstrated high reliability, with a mean time between failures (MTBF) of 10,000 km. In the future, UST Inc.’s specialists intend to increase this figure to 50,000 kilometers.
